Dust and smoke extraction
09 December 2015

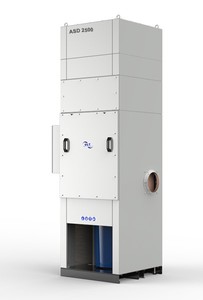

The ULT AG has further developed its extraction and filtration systems for removal of dust and smoke, the ASD 1500 and ASD 2500.

Both systems are based on a configured device and filter concept that provides users with high contaminant filtration rates, simplified filter handling and long filter lives. In addition to cost and time savings, users are said to benefit from reduced compressed air consumption, resulting in lower energy expenses for jet or rotary nozzle dedusting of the applied filter cartridges.
The ASD 1500 and ASD 2500 extraction systems were developed for removal of dry non-flammable dusts. They are suited for utilization in various industries, e.g. for bulk materials or metal processing, generally supporting all grinding, cutting, milling and polishing processes, as well as powder filling procedures.
Both systems benefit from the utilisation of conic filter cartridges, thereby enabling increased filter performance and pressure, and independent pneumatic cleaning due to their design layout. These high quality filter units are dust grade M compliant with DIN EN 60335-2-69:2008e, ensuring high separation efficiency for various particulate matters of more than 99.99 %.
Using appropriate capturing elements, dust particles can be extracted directly at their place of origin. An optional swing check valve protects pipelines against pollution by possible dirt pushback, and consequently, filter cartridges against premature wear. Low contaminated dust deposits are easily collected directly into a 70 l removable container.
